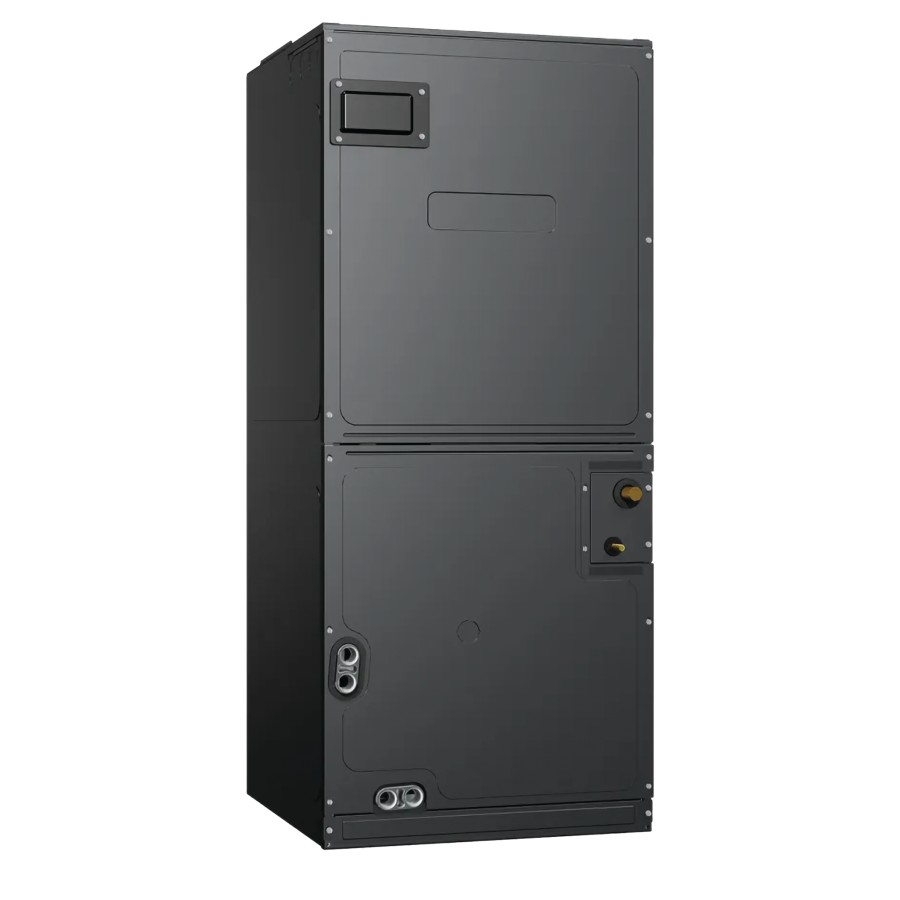

About This Product
| Volume 141 Catalog Page: 102 |
|---|
| High-efficiency coil for 2023 DOE standards |
| Factory-installed TXV valve |
| Direct-drive, multi-speed ECM motor |
| All-aluminum evaporator coil |
| Horizontal or vertical configuration |
| Coil mounting track for quick repositioning |
| DecaBDE-free thermoplastic drain pan with secondary drain connections |
| Field-installed HKS series, 3 kW to 25 kW heat kits (sold separately) |
| Air filter size: 16-in x 20-in |
| 5-year limited parts warranty, 10-year if registered |
| AMST36BU14 |
| AHU Filter Size: | 16-in x 20-in |
|---|---|
| Amps: | 5.6 |
| Btu Cool: | 36000 |
| Depth: | 21-in |
| Dimension: | 17-9/16-in W x 53-7/16-in H x 21-in D |
| Energy Star Approved: | No |
| ETL Approved: | Yes |
| Height: | 53-7/16-in |
| Line Set Size: | 3/4-in x 3/8-in |
| Liquid Line Set Size: | 3/4-in |
| Motor - PSC/EEM - Code: | ECM |
| Piston Size: | TXV |
| Refrigerant Code: | R-410A |
| Suction Line Size: | 3/8-in |
| Tons: | 3.0 Ton |
| Voltage Code: | 208/230V |
| Width: | 17-9/16-in |
